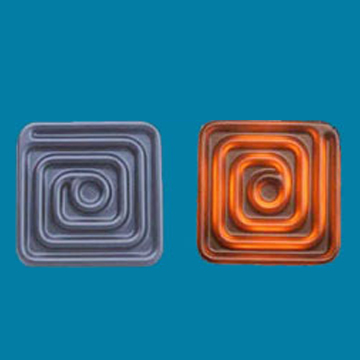

 Super high temperature heaters were
developed to increase the previous maximum
possible surface rating of ceramic panel radiators
from 64 kw/m2 to 77 kw/m2.
This radiators,
produced using the hollow casting ceramic process,
are filled with thermal insulation material and
have a special black gaze and a gold-plated back.
At an operating temperature of 900°c, over 75% of
the electrical energy supplied is transferred to
the material to be heated as medium to long-wave
IR radiation.
This series radiators are
therefore particularly suitable for use in plant
construction in which special solution have to be
drawn up for the customer's specific needs and for
applications requiring high outputs.
The
four designs cover the power range from 300 W to
1200 W and have customary market dimensions.
Existing IR equipment can therefore be retrofitted
with this series radiators.
|
